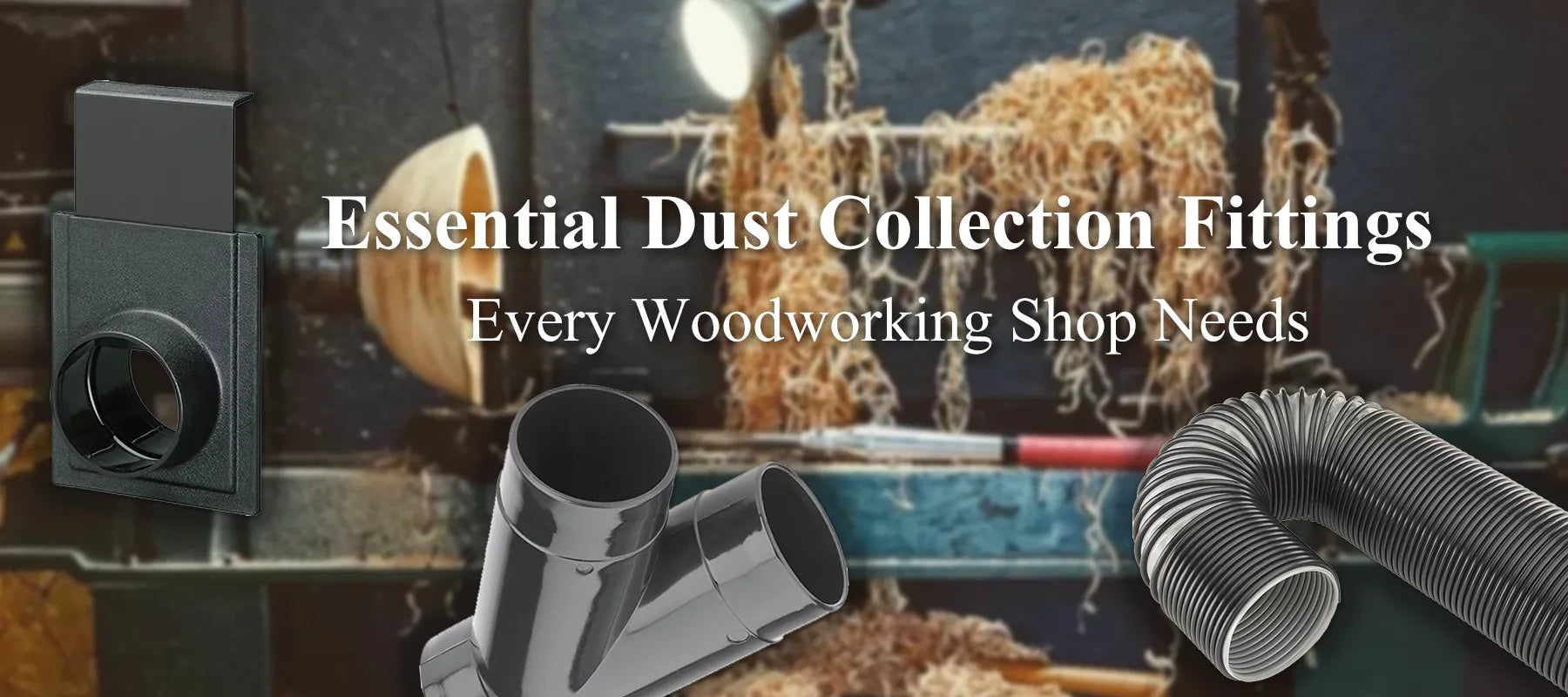

Essential Dust Collection Fittings Every Woodworking Shop Needs

Woodworking generates a massive amount of waste. While those satisfying ribbons of wood from a hand plane are easy to manage, the fine dust from table saws, routers, and sanders poses a serious challenge. Without a dedicated system, this dust coats every surface in your shop and, more importantly, enters your lungs. Building a successful extraction network requires more than just a powerful vacuum motor; it requires a strategic layout of high-quality components. To help you build the most efficient collection system possible, we have compiled a guide to the essential dust collection fittings every woodworking shop needs.

The Foundation of Airflow Efficiency

When you set up a dust collection system, your primary goal is to maintain high CFM (Cubic Feet per Minute) and high static pressure. Every time the air has to turn a corner or change speed, you lose efficiency. This is why selecting the right dust collection fittings is just as important as the horsepower of your collector.

Most hobbyist and professional shops utilize 4-inch or 2.5-inch systems. Plastic fittings offer a distinct advantage here because they are lightweight, affordable, and easy to modify. Unlike metal components, plastic adapters provide smooth internal transitions that prevent wood chips from snagging and creating a "nest" that eventually clogs the entire line.

Controlling the Flow with Blast Gates

If you have more than one machine in your shop, you cannot leave every port open simultaneously. Doing so divides the suction power of your collector across the entire shop, resulting in weak airflow at every tool. Blast gates are the essential traffic controllers of your workshop.

By installing a blast gate near each machine, you can shut off the vacuum to tools you aren't currently using. This directs 100% of the suction power to the specific saw or planer you are operating. For the best results, install the blast gate as close to the main trunk line as possible. This prevents "dead air" from sitting in the lateral lines, which can lead to dust settling and eventually blocking the pipe. Plastic blast gates are particularly popular because they resist corrosion and feature a simple sliding mechanism that is easy to clear if a stray wood chip gets stuck in the track.

Creating a Network with Y-Fittings and T-Fittings

Rarely does a shop consist of a single straight line from the vacuum to the tool. You will inevitably need to split your main line to reach different workstations. While T-fittings are common in plumbing, they are often a poor choice for dust collection. A T-junction forces the air to hit a wall and make a sharp 90-degree turn, which creates massive turbulence.

Instead, professional woodworkers prefer Y-fittings. A Y-fitting allows the air to merge into the main line at a 45-degree angle. This keeps the velocity high and reduces the "thump" of debris hitting the side of the pipe. If you are designing a system that services multiple machines along a single wall, a series of Y-fittings will ensure that your airflow remains laminar and efficient. You can find various configurations of these connectors and splitters to fit your specific floor plan.

The Importance of Proper Elbows

Sometimes, a turn is unavoidable. Whether you are running a line up a wall or around a corner, you will need elbows. Most woodworkers make the mistake of using a sharp 90-degree elbow. In the world of dust collection, a sharp turn is an airflow killer.

Whenever possible, use "long radius" elbows or combine two 45-degree elbows to create a gradual curve. This allows the wood chips to maintain their momentum. If you must use a tight turn, ensure the fitting is made of high-impact plastic that can withstand the constant sand-blasting effect of sawdust traveling at high speeds. Using the correct elbow fittings ensures that your system doesn't lose its punch before the air reaches the collector.

Bridging the Gap with Adapters and Reducers

One of the most frustrating aspects of woodworking is the lack of a universal dust port size. Your table saw might have a 4-inch port, while your sander has a 1-inch port and your biscuit joiner has something in between. This is where reducers and adapters become the unsung heroes of the shop.

A tapered reducer allows you to step down from a large main hose to a smaller tool-side hose without losing the airtight seal. Having a variety of these adapters on hand means you can switch your vacuum from a jointer to a miter saw in seconds. Always look for fittings that offer a friction fit. A good friction fit stays secure during use but allows you to disconnect the tool quickly when you need to move it across the shop.

The Role of Flexible Air Hoses

While rigid pipe is great for permanent overhead runs, you need flexibility at the machine. High-quality dust collection hoses provide the bridge between your fixed ductwork and your moving tools.

Not all hoses are equal. Cheap, thin-walled hoses can collapse under the vacuum pressure of a powerful collector. You want a hose with a reinforced wire or plastic spine. Clear hoses are particularly helpful because they allow you to see exactly where a clog has formed if the suction suddenly stops. When connecting these hoses to your fittings, use bridge clamps. These specialized clamps fit over the spiral of the hose to provide a 360-degree seal that a standard worm-gear clamp cannot achieve.

Disconnects and End Caps

For shops that use mobile bases on their machinery, permanent plumbing isn't always an option. In these cases, quick-disconnect fittings are vital. These allow you to snap a hose onto a tool and pop it off just as easily. This versatility turns a small shop into a high-production environment.

Furthermore, do not overlook the importance of end caps. If you have a branch of your ductwork that you aren't currently using, capping it off ensures that no air leaks into the system. Even a small leak at the end of a run can significantly reduce the static pressure at your active tool.

Maintaining an Airtight System

Even the best dust collection accessories won't perform if you don't install them correctly. When assembling your plastic fittings, avoid using permanent PVC glue. While it creates a great seal, it makes it impossible to reconfigure your shop later. Woodworkers move tools, upgrade machines, and change layouts constantly.

Instead, secure your fittings with small sheet metal screws or high-quality foil tape. Foil tape provides an airtight seal that prevents the "whistling" often heard in leaky systems, yet you can peel it off when you decide to move your drill press to the other side of the room.

Conclusion

A clean shop is a safe shop. By investing in the right mix of blast gates, Y-fittings, adapters, and hoses, you create an environment where you can focus on your craftsmanship rather than the cleanup. These components might seem like small details, but they are the difference between a shop covered in fine powder and a professional workspace where the air stays fresh.

When you ready your shop for its next project, take a moment to evaluate your airflow. Replace those restrictive T-junctions with smooth Y-fittings, add blast gates to isolate your suction, and ensure you have the right adapters for every tool in your arsenal. With a well-planned layout of essential dust collection fittings, you will protect your health and extend the life of your machinery.
