What Is a Ring Roller and How Is It Used as a Metal Bender?

A ring roller is a specialized type of metal bender designed to roll flat metal strips into smooth, consistent curves and full circular bands. Unlike traditional bending tools that create sharp angles, a ring roller gradually forms material into arcs, rings, and hoops that can be welded into finished components for structural, industrial, and custom fabrication projects.

This type of metal bender is commonly used to produce steel bands, rings, and circular frames for architectural metalwork, equipment fabrication, and industrial assemblies. When accuracy, repeatability, and clean curves matter, a ring roller is the correct tool for the job.

What a Ring Roller Does Differently Than Other Metal Benders

Most metal benders are designed to create straight bends at fixed angles. They are useful for brackets, frames, and boxed structures, but they are not suited for forming continuous curves.

A ring roller works on a different principle. Instead of forcing the metal into a bend, it gradually rolls the material through a set of hardened rollers, shaping it evenly over multiple passes. This rolling action allows the metal to maintain uniform thickness and consistent curvature.

The result is a smooth band that can be welded into a circle or used as a curved component without distortion or flat spots. Because of this capability, ring rollers are widely used in fabrication shops working with flat bar, strip steel, and light plate.

How a Ring Roller Is Used as a Metal Bender

As a metal bender, a ring roller forms material by passing it between two lower rollers and an adjustable center roller. The center roller applies pressure, gradually increasing the bend as the material is fed through multiple times.

Each pass increases curvature until the desired radius or full circle is achieved. This controlled process gives the operator precise control over the final shape and reduces stress on the material, helping prevent cracking or deformation when working with thicker steel.

Ring rollers are ideal for bending metal strips into bands that will later be welded together. Once the desired diameter is reached, the ends of the strip are joined to create a seamless ring suitable for structural or decorative use.

Common Applications for Ring Roller Metal Benders

Ring rollers are used across a wide range of industries and fabrication environments. Typical applications include forming steel bands for tanks, columns, guards, and enclosures.

They are also used to create circular frames, handrails, supports, and decorative architectural elements. In fabrication shops, ring rollers are often used to pre-form bands that will be welded into cylinders or curved assemblies, improving accuracy and reducing rework.

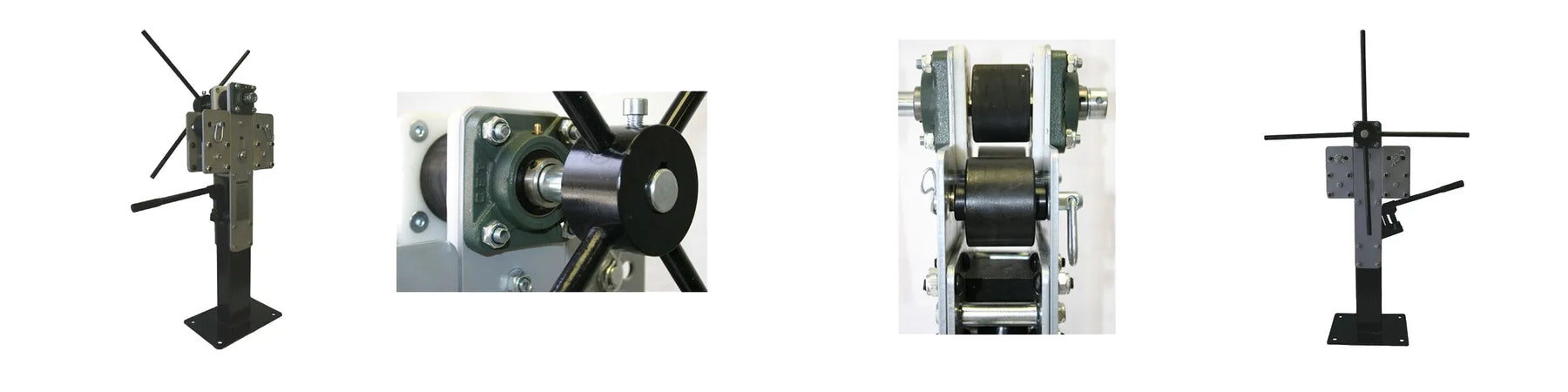

Capabilities of the Band Ring Roller Machine

The Band Ring Roller Machine is designed to function as a durable, precision metal bender for professional fabricators and serious workshop users. Built from heavy-duty steel, the machine is engineered for stability and long service life under repeated use.

It is capable of rolling 2-inch-wide steel at 3/8-inch thickness and 1-inch-wide steel at 1/2-inch thickness, covering a wide range of common band fabrication needs.

The center knurled roller prevents material slippage during rolling, ensuring consistent pressure, accurate curvature, and clean results from start to finish. Perfect circles with diameters of 8 inches or larger can be formed reliably.

Design and Ease of Use

This ring roller features an intuitive layout that allows operators to adjust pressure and feed material smoothly without excessive effort. The pedestal-style design provides clear access to the workpiece and improves control and visibility during operation.

Mounting is straightforward using the included hardware, and the solid base provides excellent stability during rolling operations. Replacement knurled rollers are available to keep the machine in service long-term.

Why a Ring Roller Is the Right Metal Bender for Band Fabrication

When the goal is to create consistent, weld-ready metal bands, a ring roller outperforms other bending tools. Traditional metal benders are not designed to form continuous curves with uniform radius.

Using a ring roller reduces material waste, improves fit-up before welding, and produces cleaner finished components. For shops that fabricate circular parts regularly, a ring roller is a core piece of equipment.

Choosing the Right Ring Roller for Your Shop

Selecting the right ring roller depends on material thickness, width, and the minimum diameter required. Capacity ratings should always be respected, as exceeding them can reduce accuracy and shorten machine life.

Rigid construction, hardened rollers, and smooth adjustment mechanisms all contribute to better results and easier operation.

You can view full specifications and capacity details on the Band Ring Roller Machine product page.

To explore additional bending solutions for fabrication and shop use, visit our Sheet Metal Brake & Metal Bender category.

Final Thoughts

A ring roller is a specialized but essential metal bender for forming smooth curves, rings, and steel bands. Its ability to gradually shape material with precision makes it the correct tool for applications where consistency and weld-ready results matter.

Whether producing structural bands, circular frames, or custom fabricated components, a ring roller improves accuracy, efficiency, and overall build quality.
