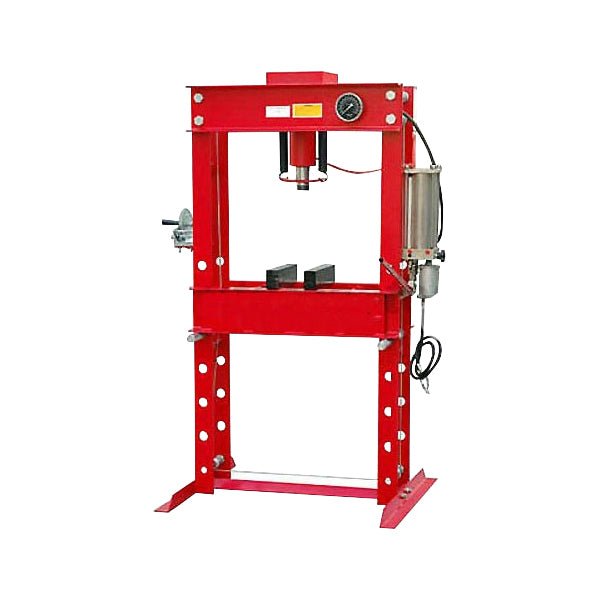

45 Ton Air Hydraulic Floor Shop Press - Air and Manual Operation - Heavy Duty
This heavy-duty 45 ton air hydraulic floor shop press is built for professional automotive, industrial, and equipment service applications. Designed for both air-assisted and manual operation, it provides controlled, high-force pressing with a reinforced H-frame steel construction for long-term durability.
Key Features and Specifications:
- Press Capacity: 45 ton
- Operation Type: Air hydraulic with manual hand pump backup
- Air Pressure Requirement: 100 to 140 PSI
- Air Inlet Fitting: 1/4" NPT
- Working Range: 0 to 28-1/2" (725 mm)
- Ram Stroke: 7-1/2" (190 mm)
- Bed Width: 31-1/2" (800 mm)
- Frame Construction: Heavy-duty H-frame steel
- Bed Adjustment System: Hand winch with cable and pulley
- Pin Diameter: 1-1/8"
- Pressure Gauge: Included for load monitoring
- Serrated Saddle: Included for improved workpiece grip
- Overall Dimensions (Approx.): 37" L x 14" W x 73" H
- Shipping Weight (Crated): 528 lbs.
Typical Applications:
- Bending and straightening metal components
- Pressing and installing bearings, gears, and bushings
- Automotive, agricultural, and industrial repair and maintenance
Freight Shipping Notice:
This item ships via ground truck freight to a commercial, non-residential address within the lower 48 United States. Commercial locations must be zoned commercial, have posted business hours, and be accessible to the public with a designated freight delivery area. Home-based businesses typically do not qualify.
Residential delivery is available for an additional fee ranging from $40 to $150. Please call or email for a more accurate freight quote prior to ordering.
